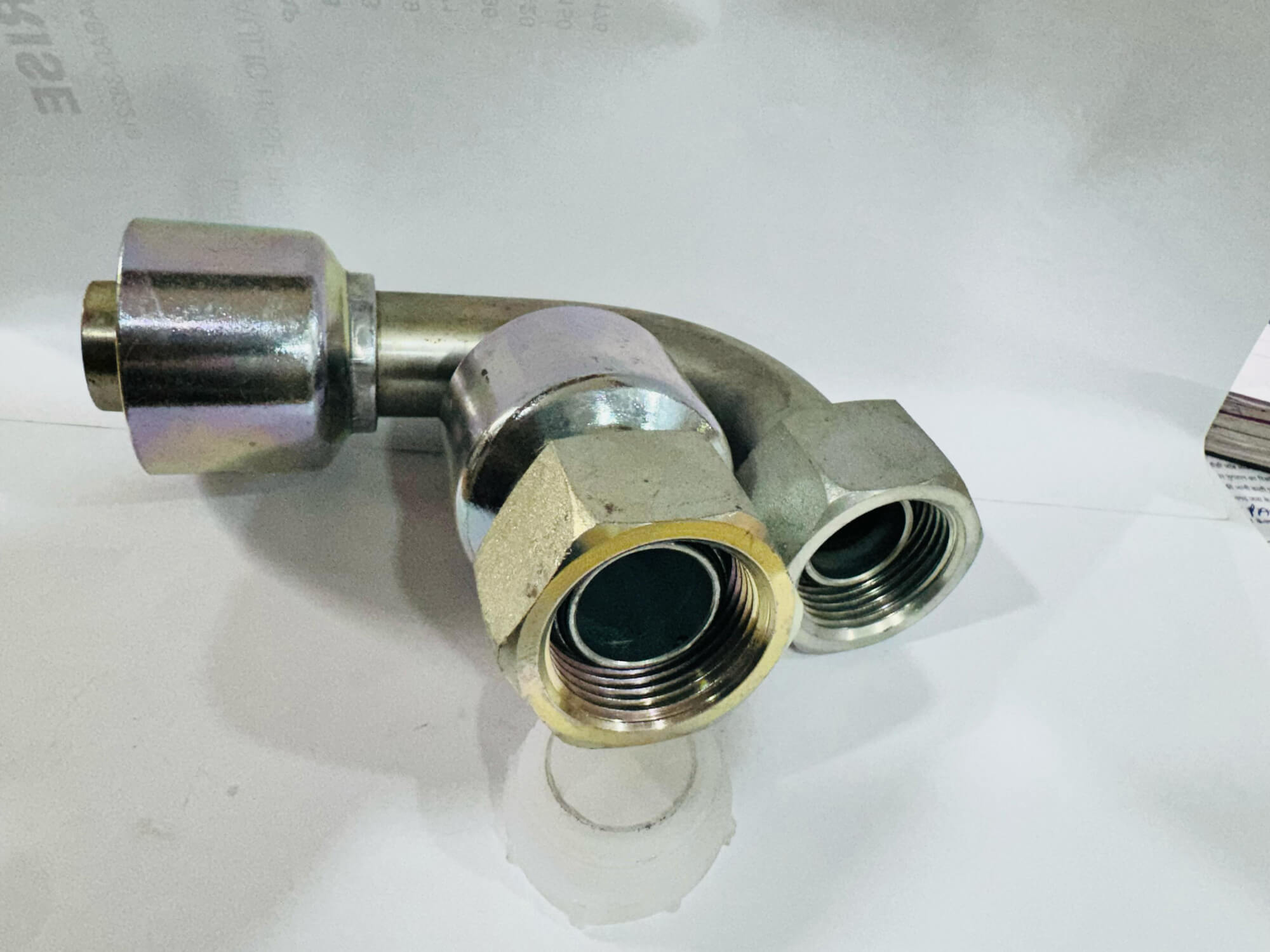

Bsp straight, bend 90*/45*
| Bsp |
| 1/4"x1/8" |
3/4"x1" |
| 1/4"x1/4" |
1"x1" |
| 1/4"x3/8" |
1"x1.1/4" |
| 5/16"x3/8" |
1.1/4"x1 .1/4" |
| 3/8"x3/8" |
1.1/4"x1.1/2" |
| 3/8"x1/2" |
1.1/2"x1 .1/2" |
| 1/2"x1/2" |
1.1/2"X2" |
| 1/2"x5/8" |
2"x2" |
| 5/8" (27MM HEX) |
2"x2.1/2" |
| 5/8" (30MM HEX) |
2.1/2" |
| 5/8"x3/4" |
2.1/2"x3" |
| 3/4"x3/4" |
3"x3" |
In Nonskiving fitting we have wide range for R1-R2-Spiral 4sp , 4sh , R13-R15 Hoses.
Straight, bend 90*/45*
| Metric Size |
| 1/4"x12x1.5 |
5/8"x26x1.5 |
| 1/4"x14x1.5 |
5/8"x30x1.5 & 2 |
| 1/4"x16x1 .5 |
3/4"x26x1.5 |
| 1/4"x18x1 .5 |
3/4"x30x1.5 |
| 5/16"x16x1.5 |
3/4"x30x2 |
| 3/8"x16x1.5 |
3/4"x36x2 |
| 3/8"x18x1.5 |
1"x36x2 |
| 3/8"x20x1.5 |
1"x38x1.5 |
| 3/8"x22x1.5 |
1"x39x2 |
| 1/2"x20x1.5 |
1"x42x2 |
| 1/2"x22x1.5 |
1.1/4"x42x2 |
| 1/2"x24x1.5 |
1.1/4"x45x2 |
| 1/2"x26x1.5 |
|

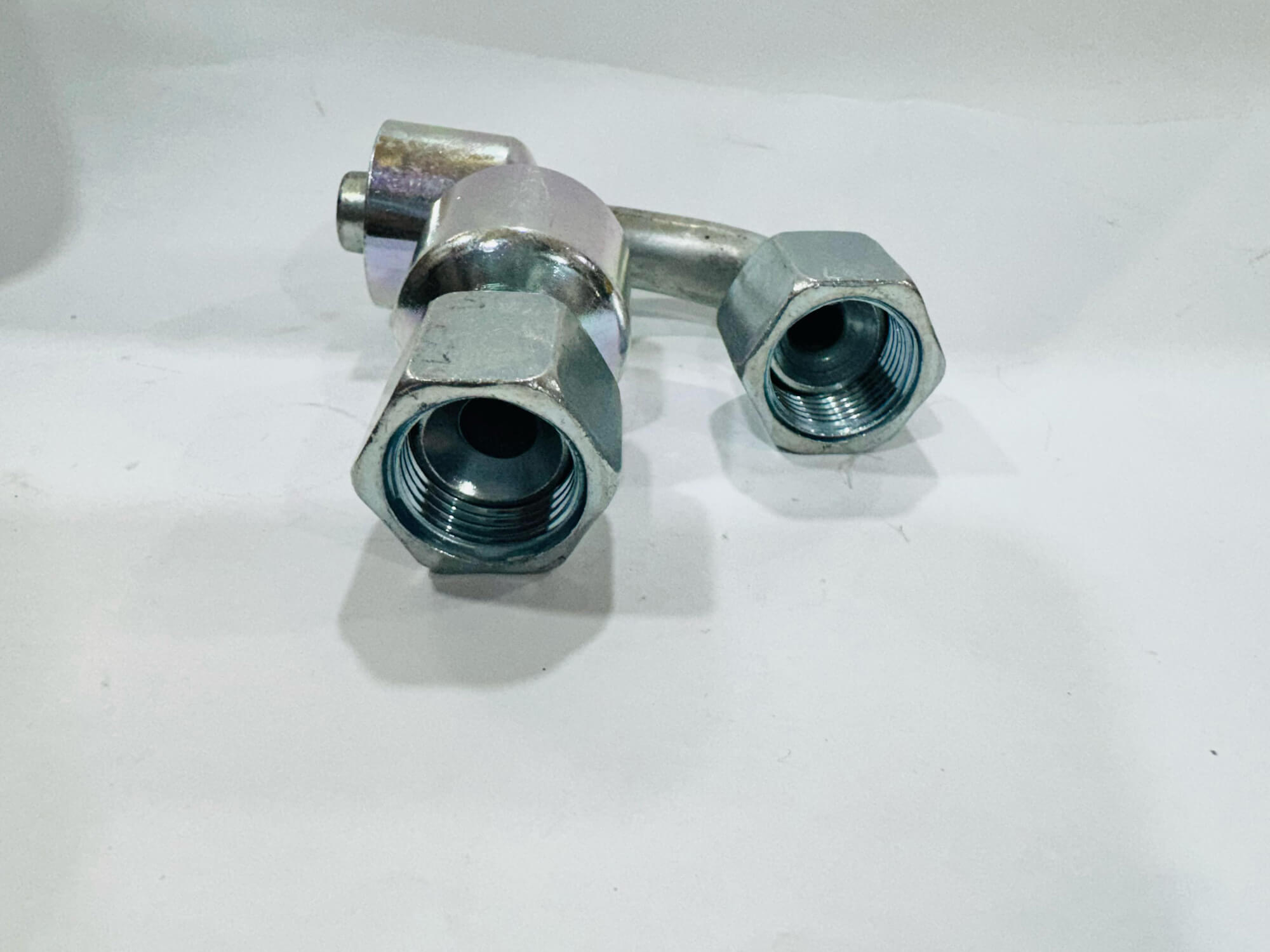

Straight, bend 90*/45*
| UNF R2 |
| 1/4"x7/16" |
5/8"x7/8" |
| 1/4"x1/2" |
5/8"x1.1/16" |
| 1/4"x9/16 |
3/4"x1.1/16" |
| 5/16"x9/16" |
3/4"x1.5/16" |
| 3/8"x5/8" |
1"x1.5/16" |
| 3/8"x9/16" |
1"x1.5/8" |
| 3/8"x3/4" |
1.1/4"x1.5/8" |
| 1/2"x3/4" |
1.1/2"x1.7/8" |
| 1/2"x7/8" |
2"x2.1/2" |

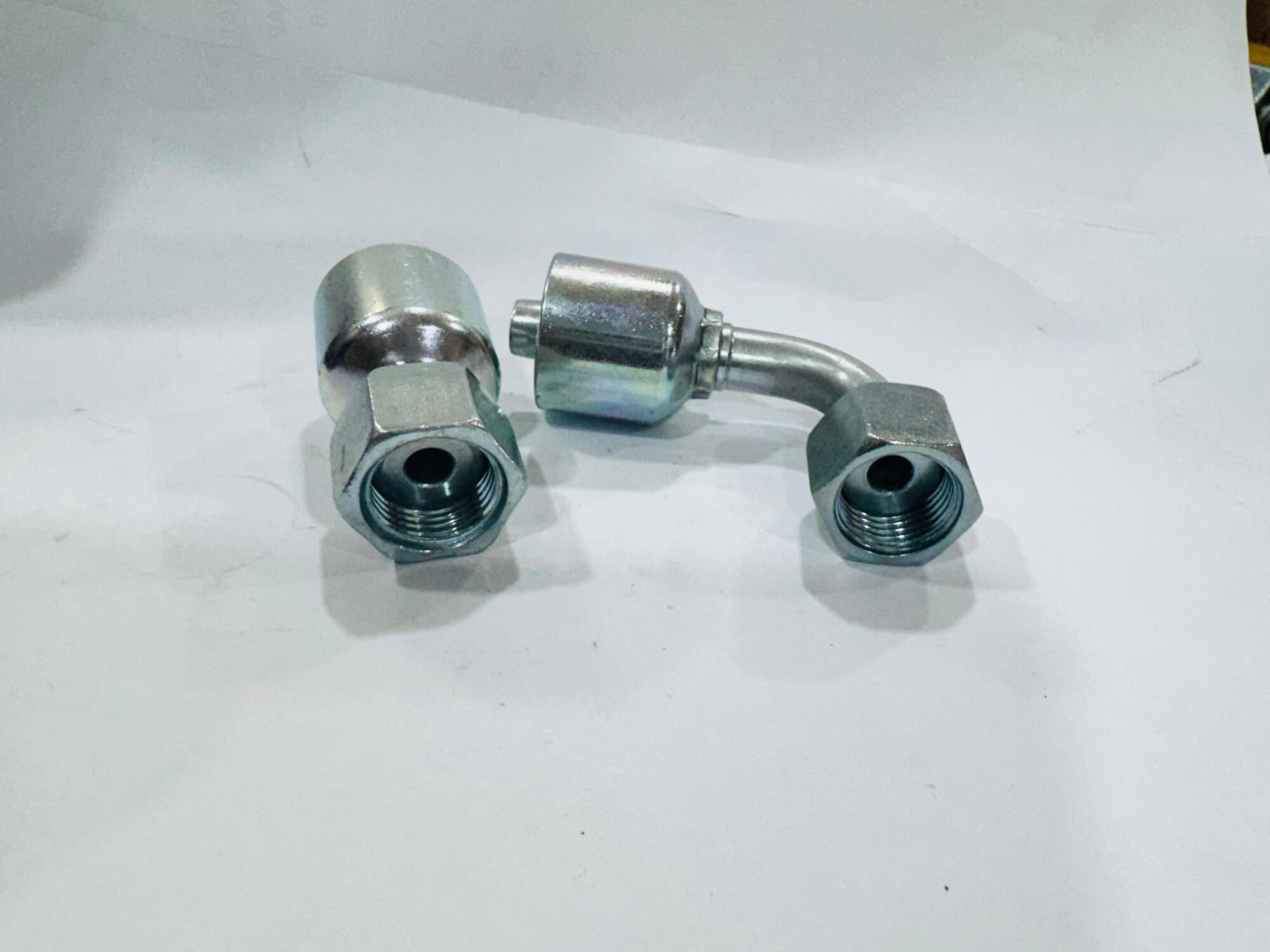

Straight, bend 90*/45*
| ORS R2 |
| 1/4"x9/16" |
5/8"x1" (14) |
| 1/4"x11/16" |
5/8"x1.3/16" |
| 3/8"x9/16" |
3/4"x1.3/16" |
| 3/8"x11/16" |
3/4"x1.7/16" |
| 3/8"x13/16" |
1"x1.7/16" |
| 1/2"x13/16" |
1"x1.11/16" |
| 1/2"x1" (14) |
1.1/4"x1.11/16" |

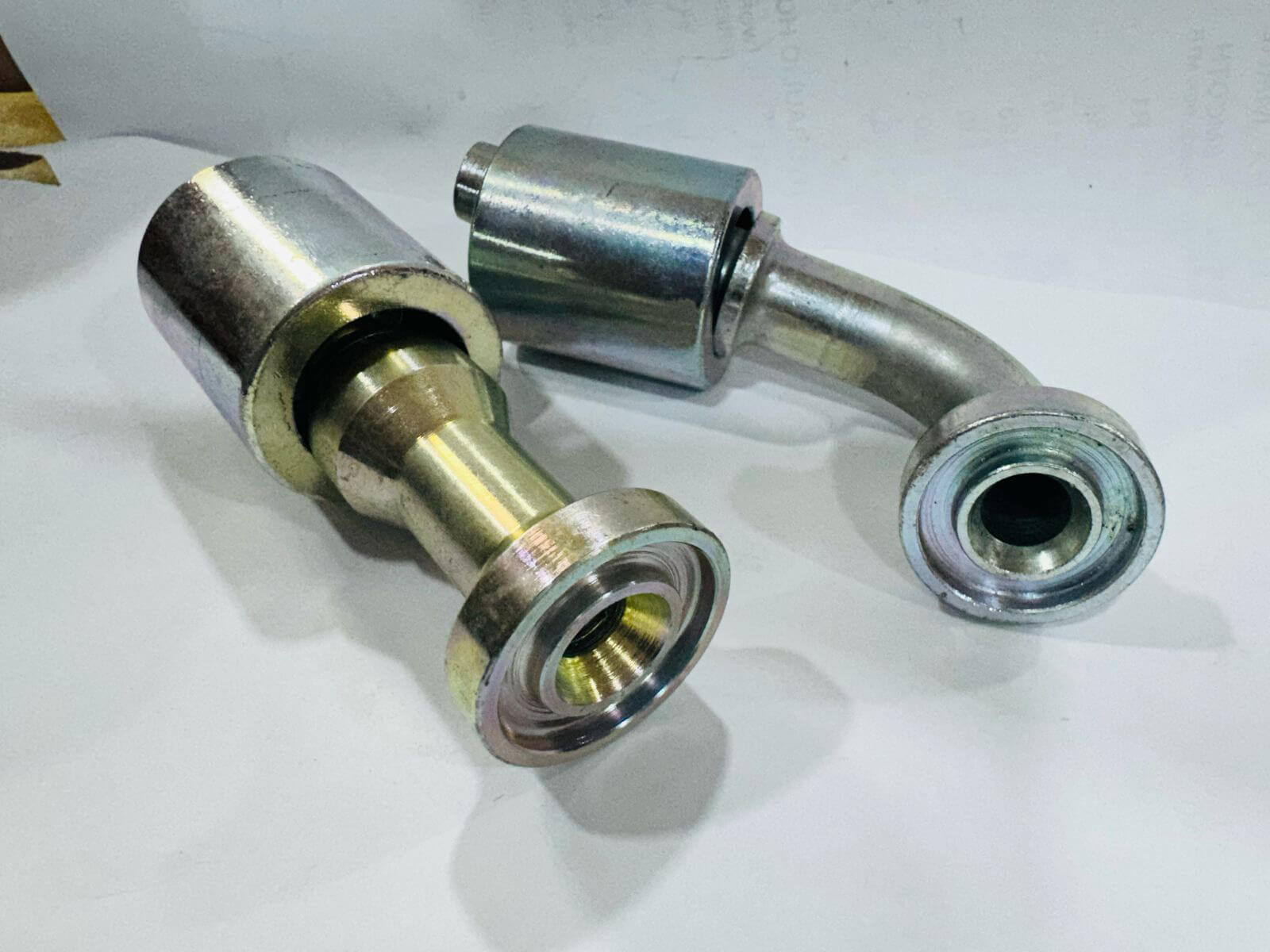

Straight, bend 90*/45*, Medium bend, Long bend
| Round FLGS |
| 1/2"x30.1 |
1"x50.8 |
| 5/8"x30.1 |
1"x54.2 |
| 3/4"x38.1 |
1.1/4"x50.8 |
| 3/4"x41.4 |
1.1/4'x54.2 |
| 3/4"x44.6 |
1.1/4"x60.3 |
| 3/4"x47.4 |
1.1/4"x63.7 |
| 1"x38.1 |
1.1/2"x60.3 |
| 1'x41.4 |
1.1/2'x63.7 |
| 1"x44.6 |
2"x71.4 |
| 1"x47.7 |
2"x79.4 |
Straight, bend 90*/45*
| ORS Spiral |
| 1/2"x13/16" |
3/4"x1.3/16" |
| 1/2"x1" |
3/4"x1.7/16" |
| 5/8"x1" |
1"x1.7/16" |
| 5/8"x1.3/16" |
|

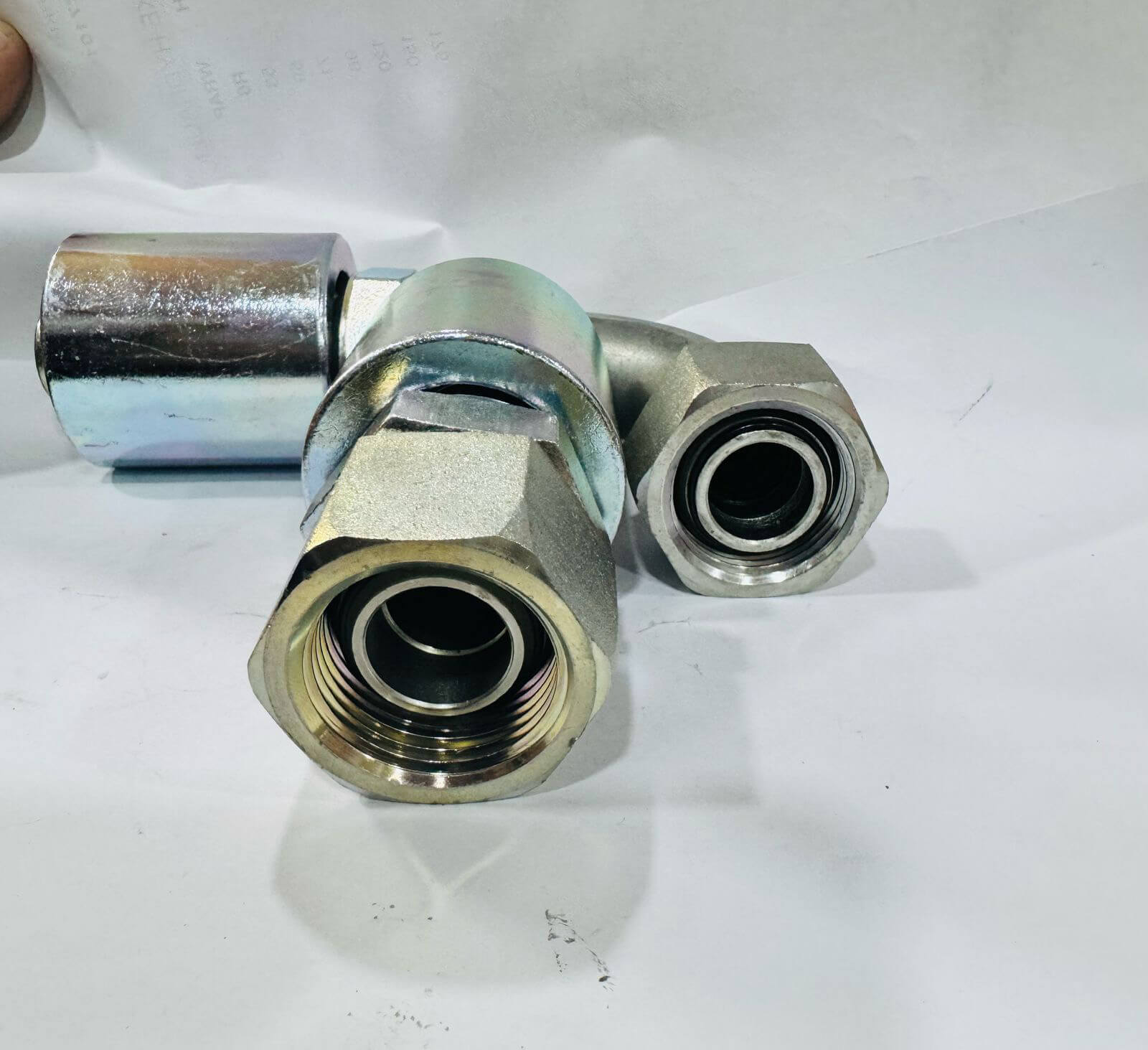

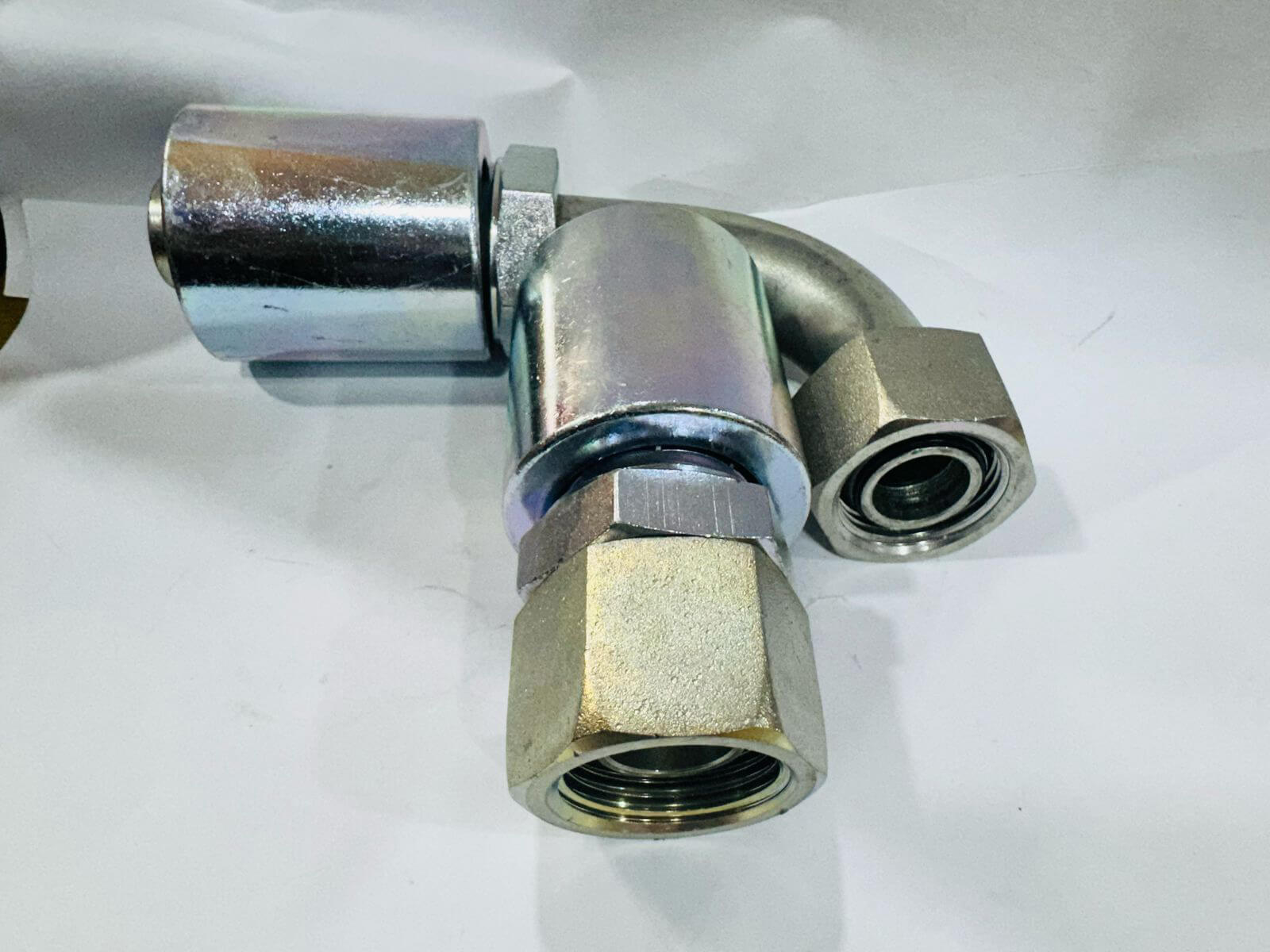

Straight, bend 90*/45*
| BSP Spiral |
| 1/2" |
1.1/4" |
| 5/8" |
1.1/2" |
| 3/4" |
2" |
| 1" |
|
Straight, bend 90*/45*
| UNF Spiral |
| 3/4"x1.1/16" |
| 3/4"x1.5/16" |
| 1"x1.5/16" |
| 1.1/4"x1.5/8" |
| 1.1/2"x1.7/8" |
| 2"x 2.1/2" |
Straight, bend 90*/45*
| MM Spiral |
| 1/2"x22x1.5 |
3/4"x36x2 |
| 1/2"x24x1.5 |
1"x36x2 |
| 1/2"x26x1.5 |
1"x42x2 |
| 5/8"x26x1.5 |
1.1/4"x45x2 |
| 5/8"x30x2 |
1.1/4"x52x2 |
| 3/4"x26x1.5 |
1.1/2"x52x2 |
| 3/4"x30x2 |
|
