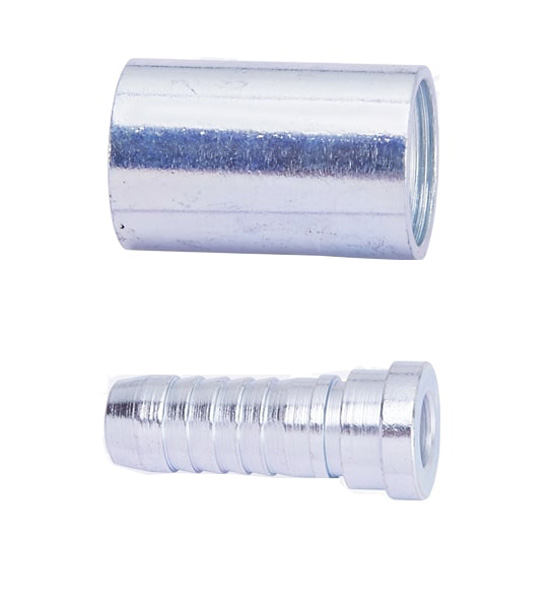

FLANGES St. SP-4 (1Flenge + 1Cap)
| 342 | 1/2" x 30.2 | ST. |
| 343 | 1/2"x30.75 | ST. |
| 344 | 3/4"x38.10 | ST. |
| 345 | 3/4"x 41.28 | ST. |
| 346 | 1"x 44.45 | ST. |
| 347 | 1"x47.63 | ST. |
| 348 | 1.1/4"x50.8 | ST. |
| 349 | 1.1/4"x53.98 | ST. |
| 350 | 1.1/2"x60.33 | ST. |
| 351 | 1.1/2x63.50 | ST. |
| 352 | 2"x71.42 | ST. |
| 353 | 2"x79.38 | ST. |

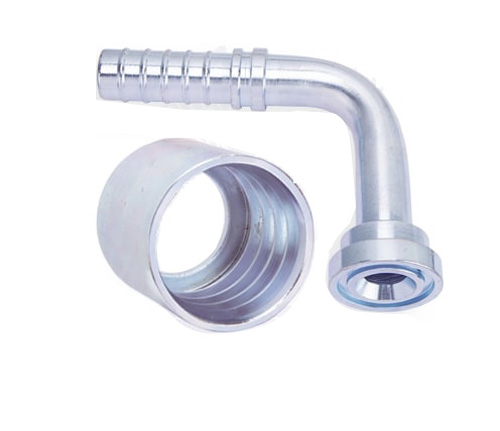

FLANGES SP-4 45°/90° (1Flenge + 1Cap)
| 376 | 1/2" x 30.2 | 45°/90° |
| 377 | 1/2"x31.75 | 45°/90° |
| 378 | 3/4"x38.10 | 45°/90° |
| 379 | 3/4"x 41.28 | 45°/90° |
| 380 | 1"x 44.45 | 45°/90° |
| 381 | 1"x47.63 | 45°/90° |
| 382 | 1.1/4"x50.8 | 45°/90° |
| 383 | 1.1/4"x53.98 | 45°/90° |
| 384 | 1.1/2"x60.33 | 45°/90° |
| 385 | 1.1/2x63.50 | 45°/90° |
| 386 | 2"x71.42 | 45°/90° |
| 387 | 2"x79.38 | 45°/90° |

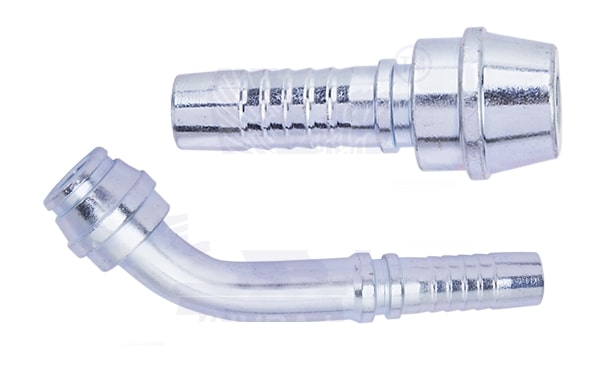

BEML/KOMATSU C TYPE M ST/BEND
| 410 | 1/4"*M 14*1.5 | st. |
| 411 | 3/8"*M18*1.5 | st. |
| 412 | 1/2"*M22*1.5 | st. |
| 413 | 5/8" M24*1.5 | st. |
| 414 | 3/4"*M30*1.5 | st. |
| 415 | 1"xM 33*1.5 | st. |
| 416 | 1/4"*M 14*1.5 | 45°/90° |
| 417 | 3/8"*M18*1.5 | 45°/90° |
| 418 | 1/2"*M22*1.5 | 45°/90° |
| 419 | 5/8" M24*1.5 | 45°/90° |
| 420 | 3/4"*M30*1.5 | 45°/90° |
| 421 | 1"xM 33*1.5 | 45°/90° |

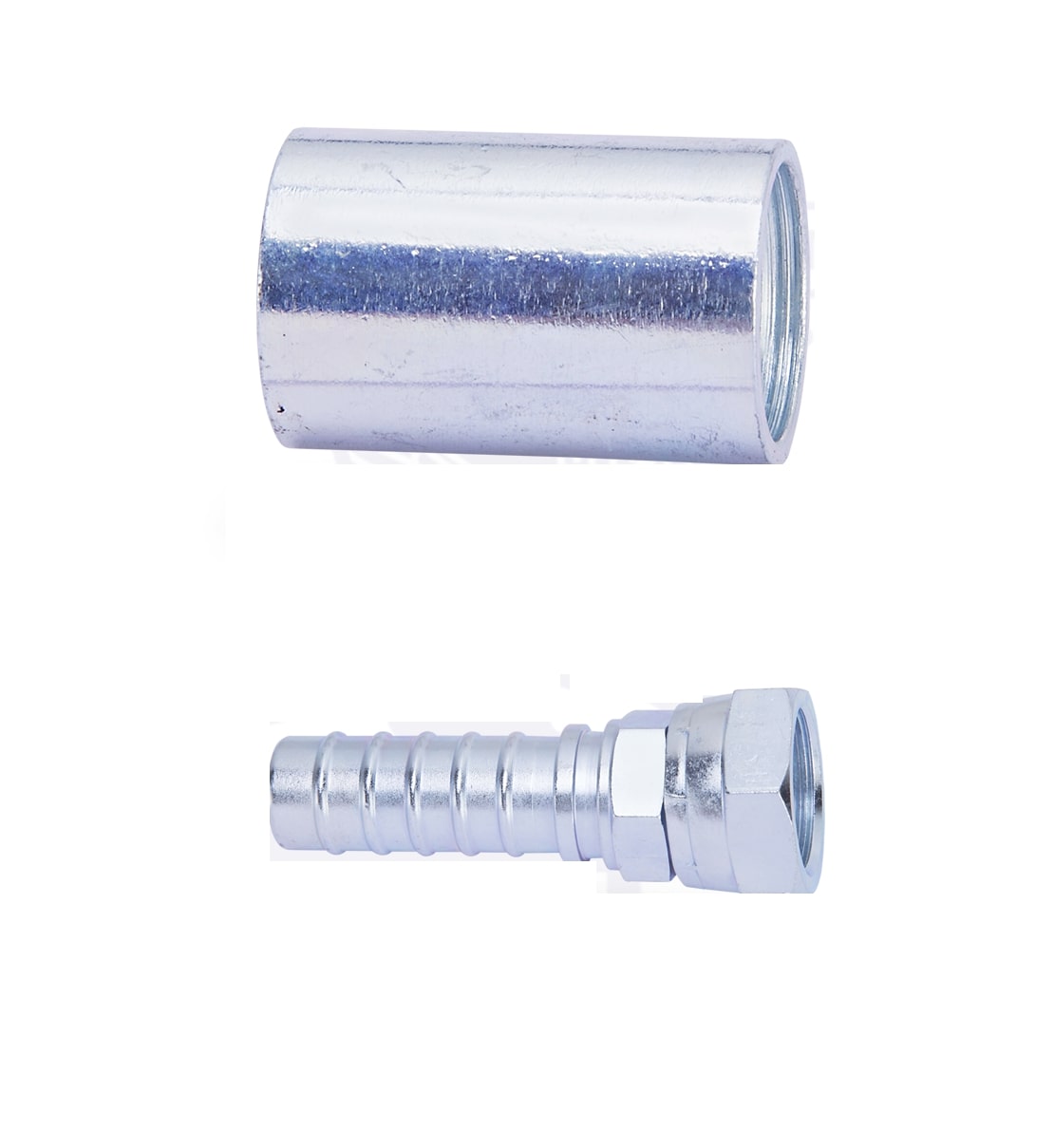

ORFS R2 St Fitting (Cap + Nut + Nipple)
| 354 | 1/4"x9/16" | ST. |
| 355 | 3/8"x11/16" | ST. |
| 356 | 3/8"13/16" | ST. |
| 357 | 1/2"x13/16" | ST. |
| 358 | 1/2"x1" | ST. |
| 359 | 5/8"x1" | ST. |
| 360 | 5/8"x1.3/16" | ST. |
| 361 | 3/4"x1.3/16" | ST. |
| 362 | 3/4"x1.7/16" | ST. |
| 363 | 1"x1.7/16" | ST. |

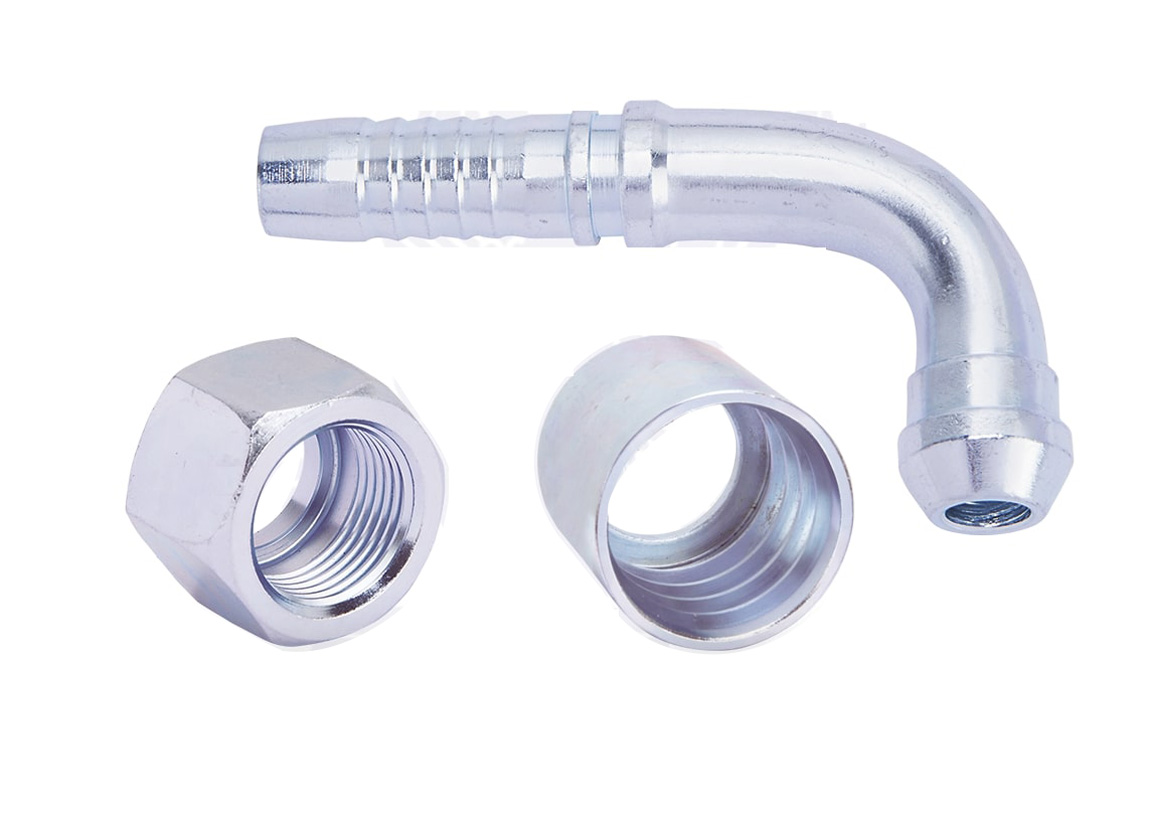

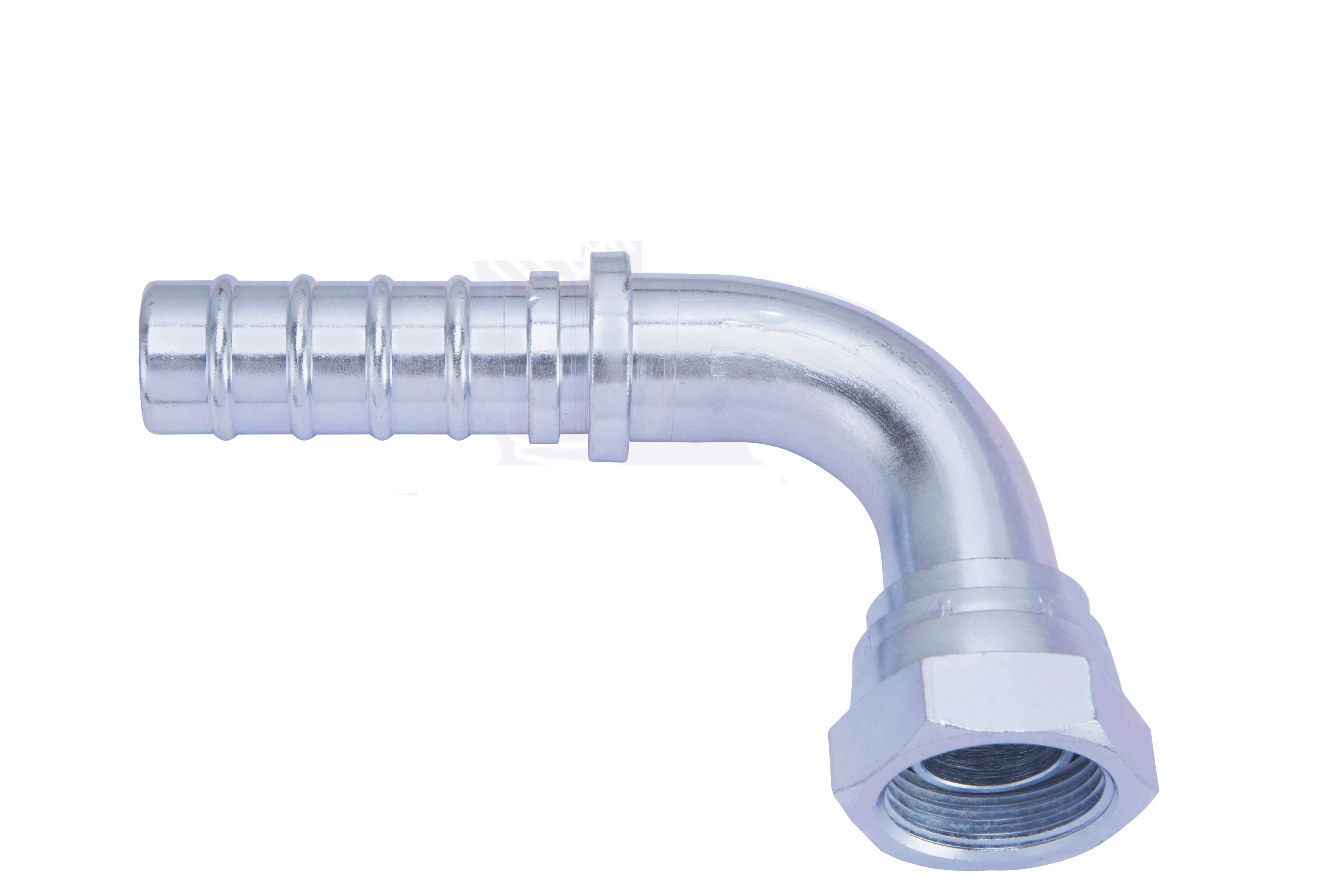

ORFS R2 45°/90°
| 388 | 1/4"x9/16" | 45°/90° |
| 389 | 3/8"x11/16" | 45°/90° |
| 390 | 3/8"13/16" | 45°/90° |
| 391 | 1/2"x13/16" | 45°/90° |
| 392 | 1/2"x1" | 45°/90° |
| 393 | 5/8"x1" | 45°/90° |
| 394 | 5/8"x1.3/16" | 45°/90° |
| 395 | 3/4"x1.3/16" | 45°/90° |
| 396 | 3/4"x1.7/16" | 45°/90° |
| 397 | 1"x1.7/16" | 45°/90° |

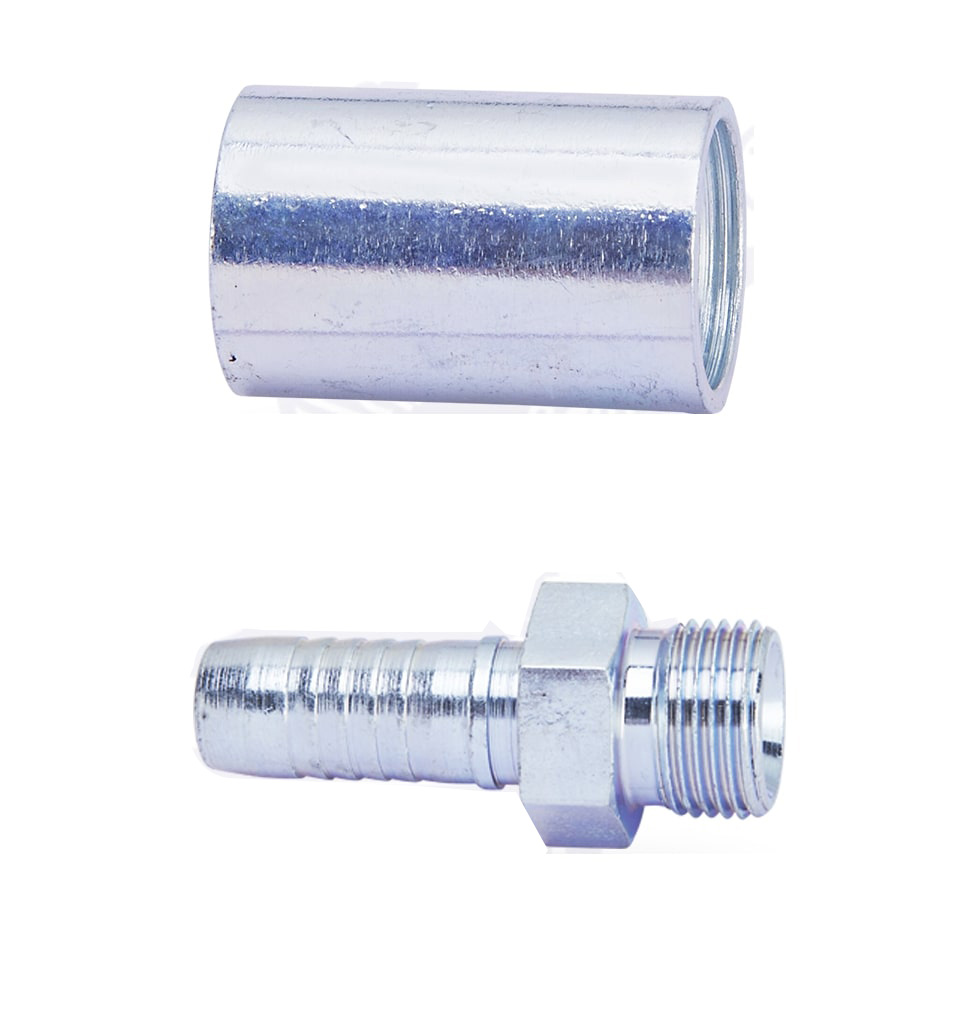

ORFS R2 Male Fitting
| 422 | 1/4"x9/16" | Male |
| 423 | 3/8"x11/16" | Male |
| 424 | 3/8"13/16" | Male |
| 425 | 1/2"x13/16" | Male |
| 426 | 1/2"x1" | Male |
| 427 | 5/8"x1" | Male |
| 428 | 5/8"x1.3/16" | Male |
| 429 | 3/4"x1.3/16" | Male |
| 430 | 3/4"x1.7/16" | Male |
| 431 | 1"x1.7/16" | Male |
ORFS SP-4 ST. FITTING
| 364 | 3/8"x11/16" | ST. |
| 365 | 1/2"x13/16" | ST. |
| 366 | 1/2"x1" | ST. |
| 367 | 3/4"x1.3/16' | ST. |
| 368 | 3/4"x1.7/16 " | ST. |
| 369 | 1"x1.7/16" | ST. |
ORFS SP-4 BEND FITTING
| 398 | 3/8"x11/16" | 45°/90° |
| 399 | 1/2"x13/16" | 45°/90° |
| 400 | 1/2"x1" | 45°/90° |
| 401 | 3/4"x1.3/16' | 45°/90° |
| 402 | 3/4"x1.7/16 " | 45°/90° |
| 403 | 1"x1.7/16" | 45°/90° |
ORFS SP-4 MALE FITTING
| 432 | 3/8"x11/16" | Male |
| 433 | 1/2"x13/16" | Male |
| 434 | 1/2"x1" | Male |
| 435 | 3/4"x1.3/16' | Male |
| 436 | 3/4"x1.7/16 " | Male |
| 437 | 1"x1.7/16" | Male |

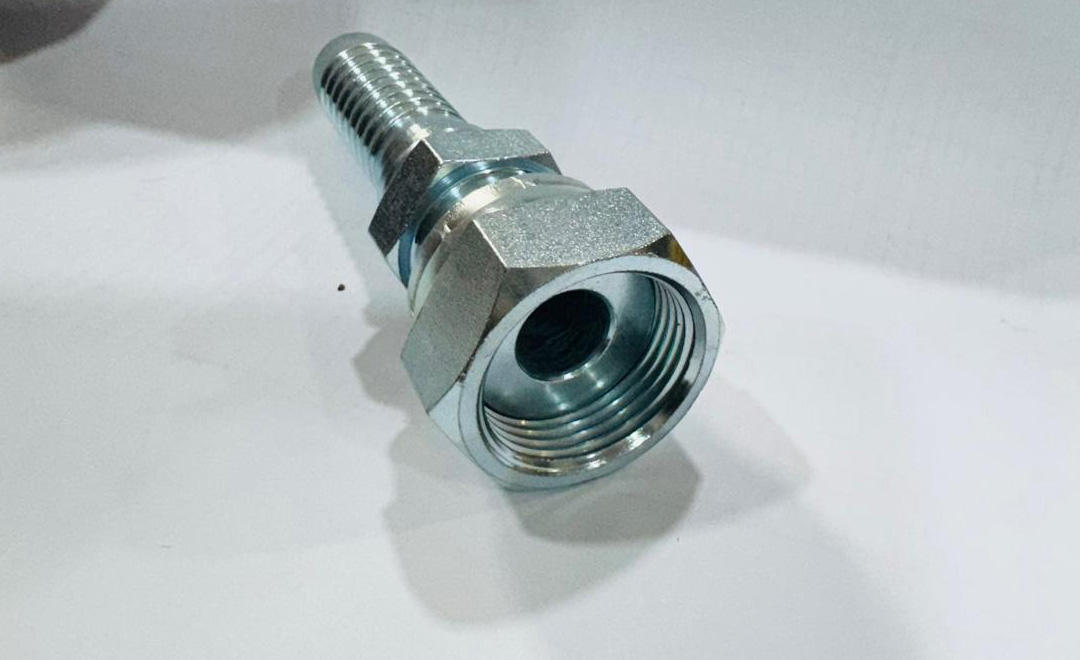

ORFS NUT CRIMP ST Fitting
| 370 | 3/8"x11/16" | ST. |
| 371 | 1/2"x13/16" | ST. |
| 372 | 1/2"x1" | ST. |
| 373 | 3/4"x1.3/16' | ST. |
| 374 | 3/4"x1.7/16 " | ST. |
| 375 | 1"x1.7/16" | ST. |

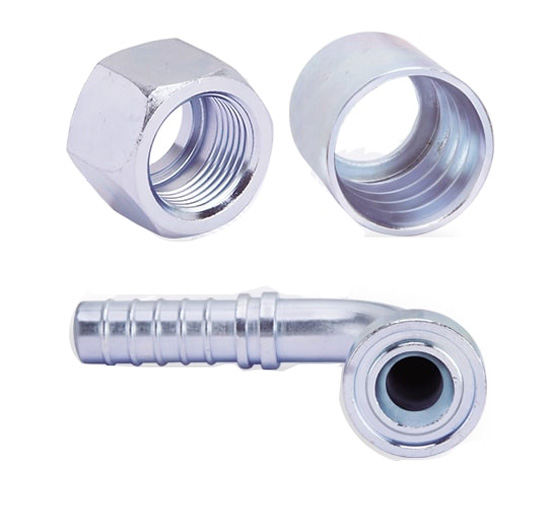

ORFS SP-4 BEND NUT CRIMP TYPE
| 404 | 3/8"x11/16" | 45°/90° |
| 405 | 1/2"x13/16" | 45°/90° |
| 406 | 1/2"x1" | 45°/90° |
| 407 | 3/4"x1.3/16' | 45°/90° |
| 408 | 3/4"x1.7/16 " | 45°/90° |
| 409 | 1"x1.7/16" | 45°/90° |
NPT MALE ( 1 MALE + 1 CAP)
| 438 | 1/4" -18 | Male |
| 439 | 1/2"-14 | Male |
| 440 | 3/4" - 14 | Male |
| 441 | 1" - 11.5 | Male |
| 442 | 1-1/4" - 11.5 | Male |
| 443 | 1-1/2" - 11.5 | Male |
