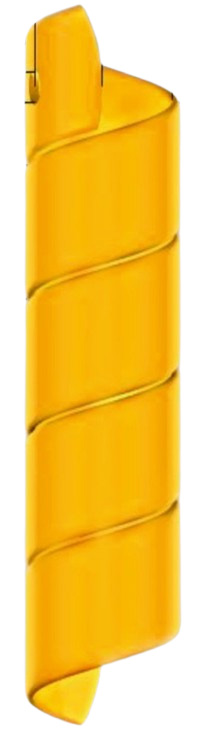

UNIQUE SPIRAL

Our Unique Spirals are produced with top, special grade virgin high density polyethylene (HDPE) which is UV protected, halogen free, with the help of special machinery using modern technology. Our spirals help to protect your hoses from extreme wear and tear and unprecedented abrasion.

Properties
  • Tough and Flexible
  • Mechanical wear abrasion and crush protection
  • Temperature range -55 °C to +100 °C
  • Non-abrasive rounded edge which protects the hose from damage
  • Resistant to acids, alkalis. Oil, solvents and water
OUTER
DIAMETER (mm)		 INNER
DIAMETER (mm) 		RECOMMENDED USAGE RANGE / HOSE OD (mm) COIL LENGTH (m)
12mm 9.6mm 9-13 50
16mm 13.4mm 13–18 50
20mm 16mm 16–22 50
25mm 20.6mm 20–27 50
32mm 27mm 27–36 50
40mm 34.6mm 34–44 50
50mm 43.2mm 43–55 25
63mm 55.6mm 55–67 25
75mm 66.2mm 66–80 20
90mm 80.2mm 80–98 20
110mm 99.0mm 99–115 12
125mm 113.2mm 113–130 12
140mm 127.0mm 125–155 10

All colours and pre-cut length are available on request

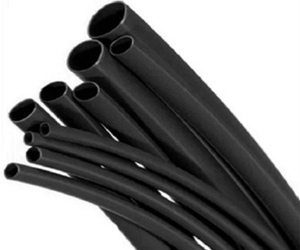

Unique PU Sleeves

PU Sleeves are majorly used to give an extra layer of protection to any kind of hose or cable for better abrasion, weather, chemical and shock resistance.

Sl. NO. Sizes length
1 15mm 30mtrs
2 19mm 30mtrs
3 20mm 30mtrs
4 22mm 30mtrs
5 25mm 30mtrs
6 28mm 30mtrs
7 30mm 30mtrs
8 32mm 30mtrs

UNIQUE NYLON (PA) SLEEVE

Unique nylon (Polyamide) sleeves are made from best quality special fiber, which protect the persons standing near the machinery from hydraulic hose ruptures and pinhole leaks, it is also useful for organizing a bunch of wires and cables and many more.

Properties

High strength and flexible

  • Good abrasion and wear resistance up to >200 000 cycles
  • Good chemical resistance to heat, oil, grease, gasoline, and other chemicals
  • Good electrical insulation
  • Withstand Temperature range -40 °C to +120 °C

Available in 50 m rolls and pre-cut lengths.

Sl.No. Flat Inner Dia
1 30 17
2 35 20
3 40 23
4 45 27
5 50 30
6 55 33
7 60 36
8 65 39
Sl.No. Flat Inner dia.
9 75 46
10 90 55
11 100 62
12 110 68
13 125 78
14 135 85
15 175 109
16 200 125

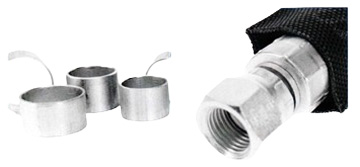

Sleeve Ferrules -
  • Our metal ferrules are commonly used to seal hose protection sleeves.
OD ID WALL WIDTH
mm mm mm m
20 17 1.5 27
25 22 1.5 27
30 27 1.5 27
35 32 1.5 27
40 36 1.5 30
45 39 1.5 30
50 46 1.5 30
55 51 1.5 30
