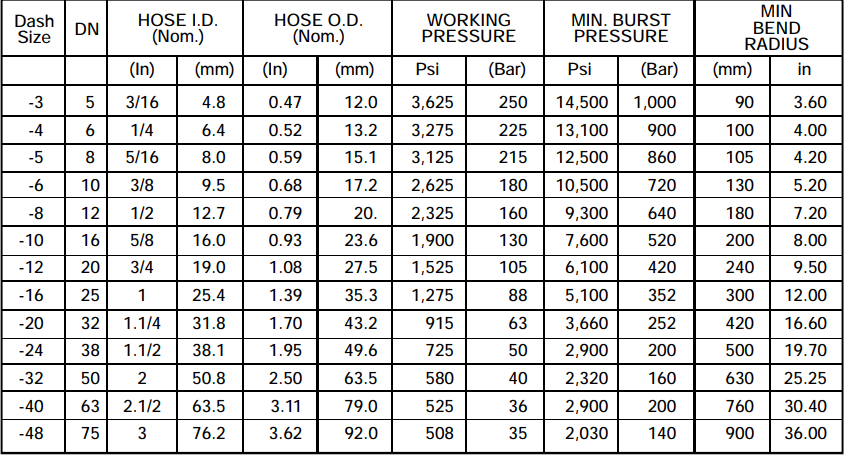

R1 AT / 1 SN

APPLICATION
MEDIUM pressure Hydraulic Lines 35 to 250 bar and requires compact outer dia. For use with petroleum synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipmnets andmachineries / systems.

* Use part nos. PH553 for low temperature application; Ph253 for MSHA for MSHA Cover, Ph255 for high temperature.

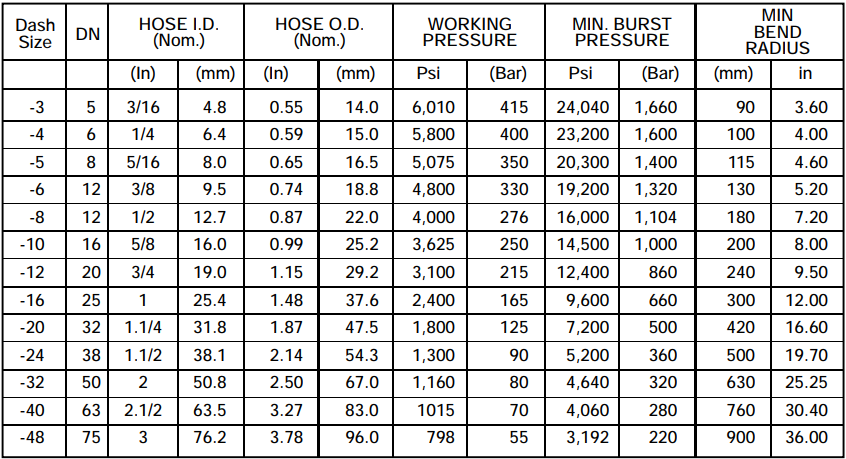

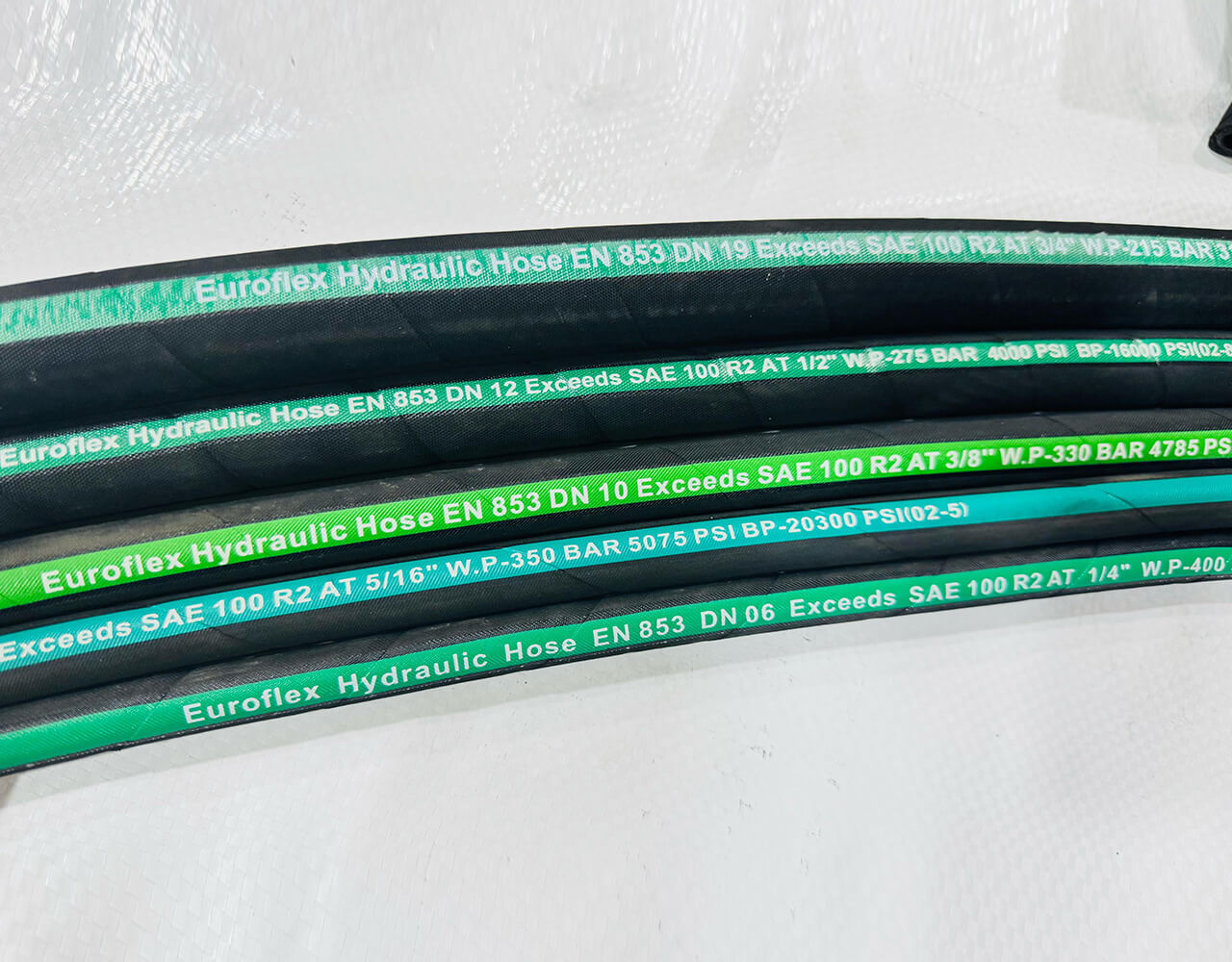

R2 AT / 2 SN

APPLICATION
High pressure Hydraulic Lines 55 to 415 bar and requires outer dia. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving &Material handling equipments and machineries / systems.

* Use part nos. PH554 for low temperature application; Ph254 for MSHA Cover; Ph265 for high temperature.

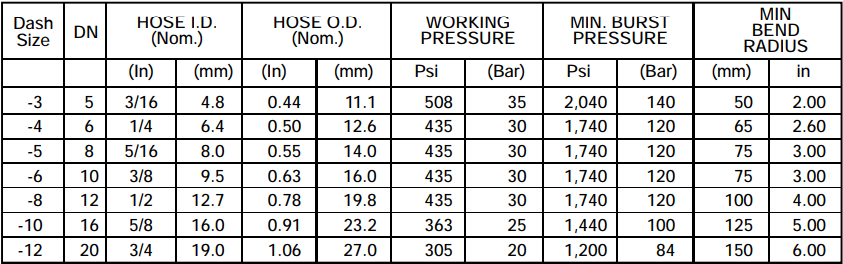

R6

APPLICATION
Very low pressure and low impulse hydraulic lines 20 to 35 bar for use with petroleum, synthetic orwater based fluids in Hydraulic systems. Suitable for Agricultural, Stationary equipments and hydraulic systems.

* Use part nos. MSHA Cover Code PH247.

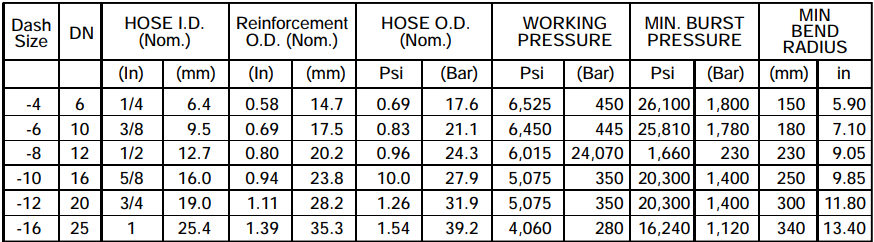

4SP

APPLICATION
Very high pressure hydraulic lines 165 to 450 bar and Hydraulic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving & Material handling equipments andmachineries / systems.

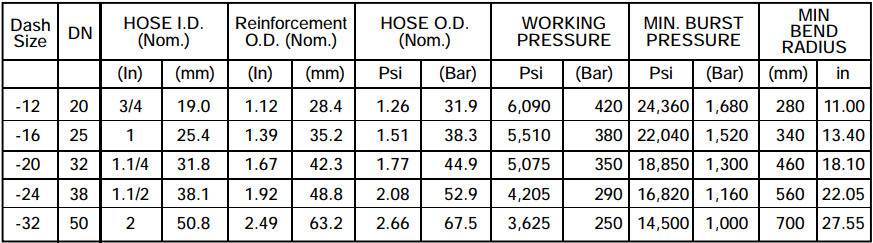

4SH

APPLICATION
Very high pressure hydraulic lines 200 to 420 bar and Hydraulic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving & Material handling equipments andmachineries / systems.

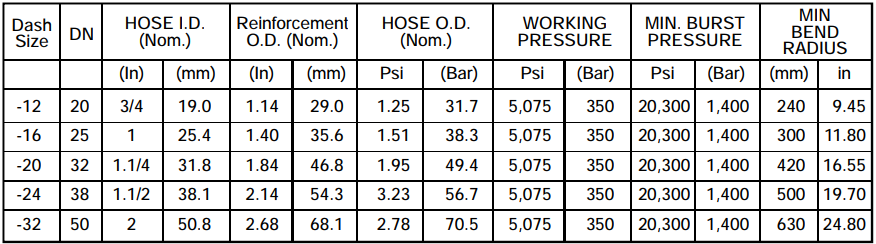

R - 13

APPLICATION
350 bar super high pressure Hydraulic Lines and hydrostatic transmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable forEarthmoving equipment andmachineries / systems.

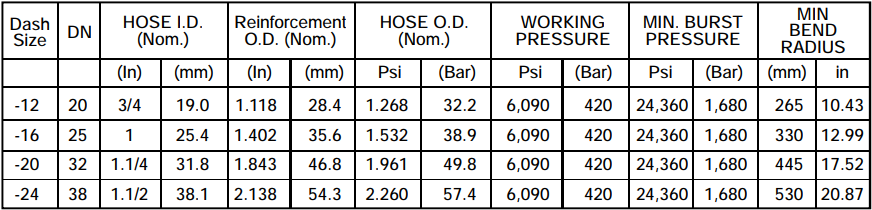

R - 15

APPLICATION
420 bar super high pressure hydraulic lines and hydraulic tranmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based emulsions in Hydraulic systems. Suitable forEarthmoving equipments andmachineries/systems.
